天先數智科技（深圳）有限公司 TSUN ELECTRONIC TECHNOLOGY(SHENZHEN) CO.,LTD

WeChat/咨詢

首頁》全部產品》磁柵控制器》磁柵單軸測控儀TS-65

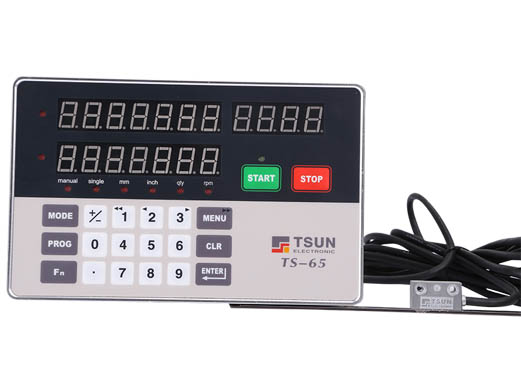

磁柵單軸測控儀 TS-65

MAGNETIC SINGEL-AXIS CONTROLLER

準絕對式測量,磁性位移傳感器艸電池+外部電源供電

Absolute type measuring, magnetic displacement sensor+Battery +external power supply

普通/伺服步進電機均可控制(端口不同）

Ordinary/servo/step motor can be controlled(port)

可顯示的信息量大三排高亮數碼管(7位+7位+4位)

Can display information: three rows highlighted digital tube（7位+7位+4位）

公制/英制可切換

Metric/inch swappable

單動/手動運行模式

Single-action/manual operation mode

10組預設工程數據存儲

10 the default engineering data storage

菜單參數豐富,可自由設定

Rich menu parameters, can be set freel

工件計數功能

Artifacts counting function

自適應運動慣性

Adaptive motion inertia

自修正絲桿間隙誤差

Since the fixed screw clearance error

高可靠性繼電器(正反向+減速+完成)+晶體管脈沖(脈沖+方向)輸出

Highly reliable relay (forward and reverse +speed +complete)+transistor pulse(pulse direction ) output

后備電池,即使外部電源斷開,設備有位移,TS65也能實時跟蹤測量

Backup battery, even if the external power supply disconnected，device has a displacement of TS65 real-time tracking and measurement

特性
features
技術參數
Technical parameters
備注
Notes

系統精度
System accuracy
±(0.03+0.01*L)mm
L單位為:米
Unit: m

重復精度
Repeat accuracy
0.01mm

測控范圍
Range of measurement and control
-19999.9mm~99999.9mm
與分辨率設定有關
Associated with the DPI setting

顯示分辨率
Display resolution
0.01mm/0.05mm/0.1mm
可設定
Can be set to

電源電壓
Power supply voltage
AC220V/AC110V

后備電池
Backup battery
1節2號 1.5v(LR14)
1 2nd 1.5v(LR14)
壽命約2.5年
Life is about 2.5 years

整機功耗
Machine power consumption
小于4W

測控速度
Control speed
MAX2.5m/S

適用磁尺
Applied magnetic ruler
5mm+5mm

讀頭與磁帶間距
Read head and the tape space
0.5mm------2.0mm

輸出形式
Output form
繼電器常開+常閉
Relay normally open + close

輸出觸點功率
Contact power output
AC220V/5A DC24V/10A

傳感器線長度
Sensor cable length
1m------15m
可定制
Can be customized

傳感器防護等級
Sensor protection rating
IP67

工作溫度
Working temperature
-10℃......+60℃

存儲溫度
Storage temperature range
-30℃......+80℃

外殼
Shell
金屬
Metal

TS-65其它優點

1:準絕對式測量,具備磁柵測量儀的一切優點,直接測量,無機械轉換誤差。
2:可控制普通或伺服/步進電機,全閉環,不同的端口輸出不同的控制信號。
3:控制系統性價比高。

TS-65 other benefits
1 quasi-absolute measurements, with all advantages of magnetic measuring instrument, measuring, no mechanical conversion error.
2:General/servo/ stepper motors can be controlled, closed-loop, a different port to output different control signals.
3: control system for high performance-price ratio.
